CAN bus / J1708 / J1587 contactless reader

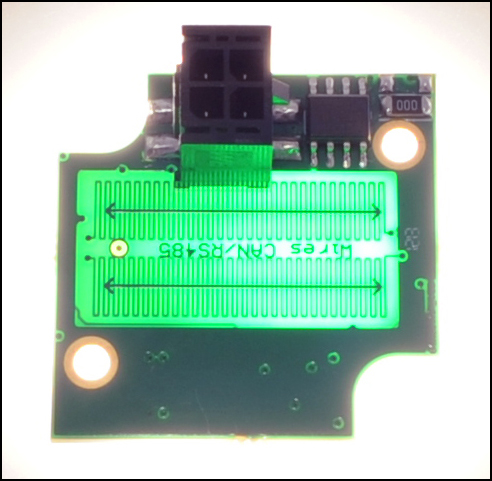

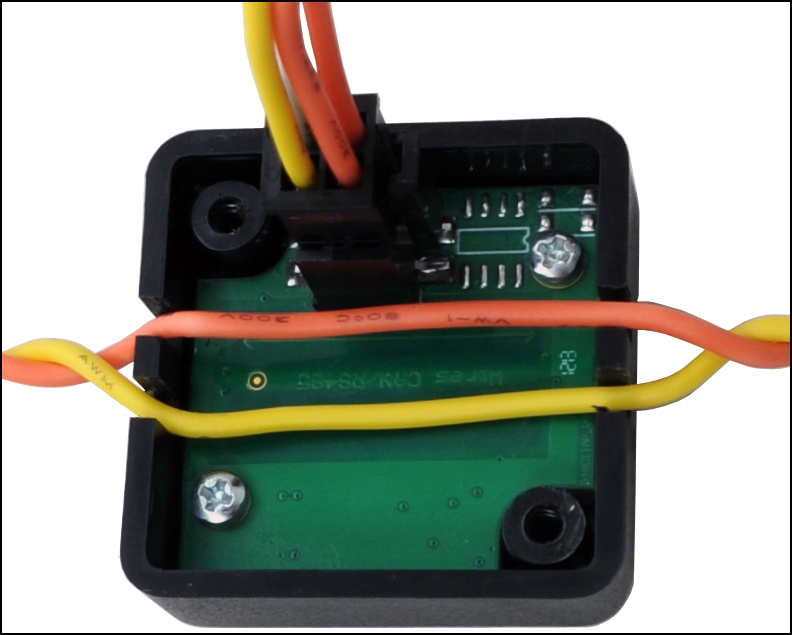

tap pcb tap inside

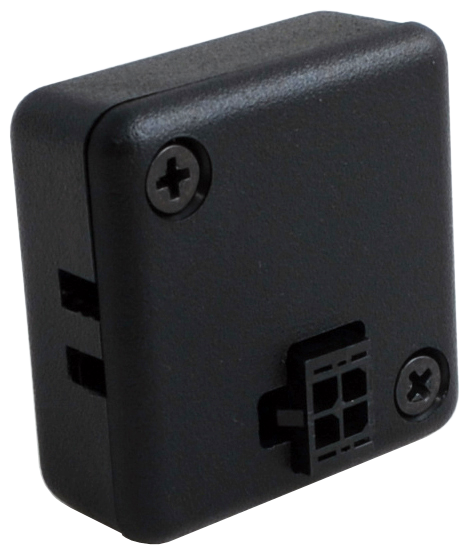

G4N02TAP is a genuine device created for collecting specific automotive information like fuel consumption or odometer from any vehicle equipped with CAN-bus or JBus.

The tapping sensor is working by detecting the energy within the electrical network by using coil electrodes aligned with the wires transporting the data signals, which is transformed in a reconditioned signal and isolated over an output CAN-bus or JBus interface.

Hardware Features

  • Reads vehicle's signals trough wires eliminating warranty issues or electrical problems
  • Compatible with the CAN standards: J1939 @250/500kbps, ISO 11992, ISO 11783
  • A bi-colored LED which indicates the presence of data within the vehicle's bus
  • The sensor automatically detect signals polarity, thus minimizing incorrect installation
  • The output interface is connectable directly in any FMS interface or GPS Tracker
  • Multiple sensors can be connected in parallel on the output (isolated) interface
  • The sensor do not require any special configuration to work with the telematic units
  • Reliable reading of CAN-bus data due to the intelligent signal detection and processing
  • The reading method used is not altering in any way the signal from the vehicle's bus
  • The CAN output interface can communicate to a distance to over 100m @500Kbps
  • Non-intrusive technology
  • Compatible with all vehicles
  • No physical wire connections
  • Output data via CAN interface
  • Full galvanic protection
  • Signals presence notification
  • No soldering or wire cutting
  • Fast & Easy installation

Technical Specifications

CAN-FMS Interface Compatible with CAN-bus : 128kbps .. 1Mbps
Compatible all CAN standards
1LED for CAN traffic detection
Compatible with all vehicles
J-Bus Interface RS485 Half-Duplex: 9600bps
Compatible J1708 / J1587 standard
1LED for traffic detection
Compatible with all vehicles
Technical specifications Enclosure size 35x35x15 mm
Power suppy:+7 .. 28 Vdc.
Power consume: 15 mA
Overvoltage protection
Working temperature: -40C .. +85C
